# `display`, `show` and `print`

### How Julia's display system works

Fredrik Ekre, JuliaCon 2020

Slides @ [fredrikekre.se/juliacon](https://fredrikekre.se/juliacon/)

---

# Introduction

Julia's display system

* Powerful but complicated system

* Many functions related to producing output: `display`, `show`, `print`, `write`

* Support for many different output formats/representaions, e.g. text, images, etc.

* Possible to implement "pretty printing" for custom types

---

# Agenda

* Overview of the general structure and the functions involved (`display` etc)

* Example how to extend the system for user-defined types

* Example of how the system is beeing used in the wild

---

# From object to output

For an object `x`, the following happens in the REPL

* `display(x)`

Selects a suitable display from the internal stack

* `display(disp, x)`

Selects a suitable "MIME"-format for the representation that the display supports

* `show(disp, mime, x)`

Produces and writes the actual output to the IO buffer, for example using `print` or `write`.

---

# MIME - Multipurpose Internet Mail Extensions

* A system to describe the representation of objects in e.g. email, webpages etc

```bash
    $ curl -LI google.com
    HTTP/1.1 200 OK
    Content-Type: text/html; charset=ISO-8859-1
    ...
    ```

* In Julia there is a type `MIME` to represent different formats

```julia
    julia> MIME"text/plain"()
    MIME type text/plain

julia> MIME"image/png"()
    MIME type image/png
    ```

---

# `display`

* The `display` function is the top-most function

* Usually a "behind the scenes" function that users don't interact with

* Implemented by "displays" and frontends such as the REPL, editors (e.g. Juno, VSCode), IJulia, etc.

<hr>

## Example

```julia
struct REPLDisplay <: AbstractDisplay end

display(d::REPLDisplay, x) = ...
```

---

# `show`

* The `show` function produces and writes output in the format specified by the MIME. For example

```julia
    show(io, MIME"image/png", x)
    ```

writes an image (PNG) representation of `x` to `io`.

* Implemented to customize output for user-types, e.g.

* `show(io::IO, ::MIME"text/plain", ::MyType)` for plain text representation
      * `show(io::IO, ::MIME"text/html", ::MyType)` for HTML representation
      * `show(io::IO, ::MIME"image/png", ::MyType)` for PNG representation
      * `show(io::IO, ::MIME"application/json", ::MyType)` for JSON representation
      * `show(io::IO, ::MIME"application/pdf", ::MyType)` for JSON representation
      * ...

---

## `print`

> Print a canonical (un-decorated) text representation. The representation used by print includes minimal formatting ...

* `print` falls back to `show`
  * Should generally not be extended for user types (extend `show`)

## `write`

* Writes the binary representation of objects

---

# Customization

* Output options can be passed to `show` using an `IOContext`

* `IOContext` is a dictionary-like object that wraps an IO buffer

* `IOContext` can be queried for output options

* `:compact`: specifying that small values should be printed more compactly, e.g. fewer digits
      * `:limit`: specifying that containers should be truncated, e.g. showing … in place of most elements
      * `:color`: specifying whether ANSI color/escape codes are supported

```julia
function show(io::IO, ::MIME"text/plain", x::MyType)
   if get(io, :color, false)
       # produce color output of x and write to io
   else
       # produce no-color output of x and write to io
   end
end
```

---

# Example

Define `show` methods for a user defined type: `text/plain`

```julia
julia> struct JuliaLogo end
```

```julia
julia> x = JuliaLogo();

julia> x
JuliaLogo()
```

```julia
function Base.show(io::IO, ::MIME"text/plain", ::JuliaLogo)
    print(io, """   _
     _(_)_
    (_) (_)""")
end
```

```julia
julia> x
   _
 _(_)_
(_) (_)

```

---

# Example

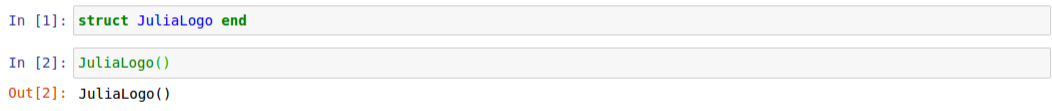

Define `show` methods for a user defined type: `image/png` and `image/svg+xml`

---

# Example

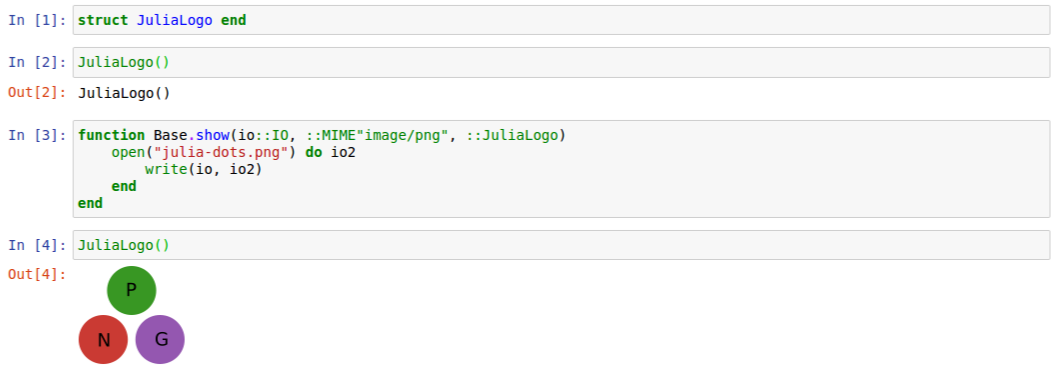

Define `show` methods for a user defined type: `image/png` and `image/svg+xml`

---

# Example

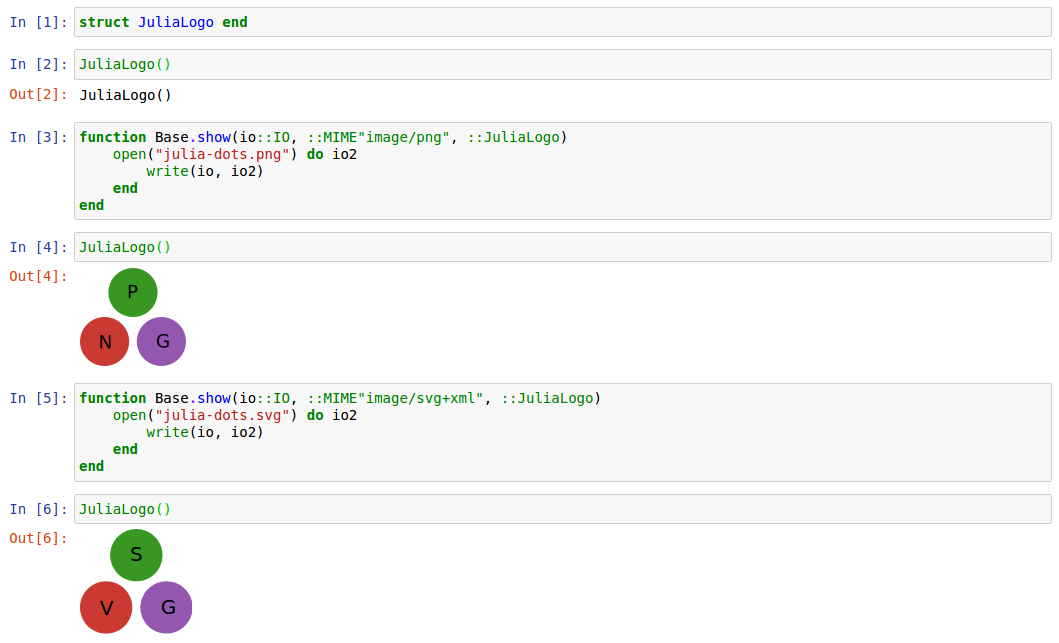

Define `show` methods for a user defined type: `image/png` and `image/svg+xml`

---

# Example: `IJulia`

Example of a frontend that uses lots of Julia's display functionality

* Defines a display to show output:

```julia
    struct InlineDisplay <: AbstractDisplay end
    ```

* `display` implementation supports multiple MIMEs (text, images, html, ...)

* `IJulia` captures multiple representations of the same object and the frontend makes the choice about what to display

---

# Example: `IJulia`

Look inside a notebook

Cell #2:

```json
{
 "source": [
  "JuliaLogo()"
 ],
 "outputs": {
   "text/plain": [
    "JuliaLogo()"
   ],
  },
},
```

---

# Example: `IJulia`

Look inside a notebook

Cell #4:

```json
{
 "source": [
  "JuliaLogo()"
 ],
 "outputs": {
   "image/png": "iVBORw0KGgoAAAANSUhEUgAAAGoAAABiCAYAAAC4ck...",
   "text/plain": [
    "JuliaLogo()"
   ],
  },
},
```

---

# Thanks for listening!
